| Hoog licht: | 50mm Lens Antenna,40.0GHz Lens Antenna,80mm Length Lens Antenna |
||
|---|---|---|---|

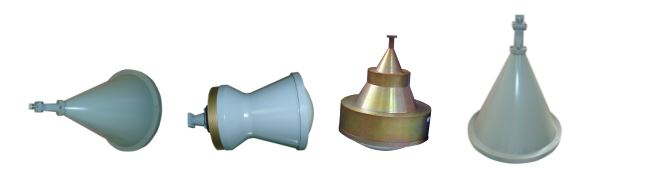

CWJ vervaardigt een reeks van Lensantenne zoals de kegelantenne van de hoornlens, de lensantenne van de piramidehoorn, het type van voerstraling lensantenne, punt die lensantenne, enz. concentreren. Wij kunnen het ontwerp, de verwerking en het testen verstrekken. Roep ons gelieve en uw speciale behoeften met één van onze verkoopingenieurs te bespreken.
De kegelantenne van de Hoornlens
【Specificaties】
| ModelNo * |
Freqwaaier (GHz) |
Aanwinst (dB) |
Minder belangrijk Niveau (dB) | Schakelaar |
Monddiameter (Φmm) |
Lengte (mm) |
|
| E | H | ||||||
| CWJ320LHA50 | 26.5~40.0 | 21 | ≤-22 | ≤-30 | Fbp-320 | 50 | 80 |
| CWJ320LHA80 | 26.5~40.0 | 25 | ≤-22 | ≤-30 | Fbp-320 | 80 | 100 |
| CWJ320LHA100 | 26.5~40.0 | 27 | ≤-22 | ≤-30 | Fbp-320 | 100 | 120 |
| CWJ320LHA150 | 26.5~40.0 | 31 | ≤-22 | ≤-30 | Fbp-320 | 150 | 170 |
| CWJ320LHA170 | 26.5~40.0 | 32 | ≤-22 | ≤-30 | Fbp-320 | 170 | 190 |
| CWJ320LHA200 | 26.5~40.0 | 33 | ≤-22 | ≤-30 | Fbp-320 | 200 | 220 |
| CWJ260LHA50 | 22.0~33.0 | 19 | ≤-22 | ≤-30 | Fbp-260 | 50 | 80 |
| CWJ260LHA80 | 22.0~33.0 | 23 | ≤-22 | ≤-30 | Fbp-260 | 80 | 100 |
| CWJ260LHA100 | 22.0~33.0 | 25 | ≤-22 | ≤-30 | Fbp-260 | 100 | 120 |
| CWJ260LHA150 | 22.0~33.0 | 29 | ≤-22 | ≤-30 | Fbp-260 | 150 | 170 |
| CWJ260LHA170 | 22.0~33.0 | 30 | ≤-22 | ≤-30 | Fbp-260 | 170 | 190 |
| CWJ260LHA200 | 22.0~33.0 | 31 | ≤-22 | ≤-30 | Fbp-260 | 200 | 220 |
| CWJ220LHA80 | 18.0~26.5 | 21 | ≤-22 | ≤-30 | Fbp-220 | 80 | 100 |
| CWJ220LHA100 | 18.0~26.5 | 23 | ≤-22 | ≤-30 | Fbp-220 | 100 | 120 |
| CWJ220LHA150 | 18.0~26.5 | 27 | ≤-22 | ≤-30 | Fbp-220 | 150 | 170 |
| CWJ220LHA170 | 18.0~26.5 | 28 | ≤-22 | ≤-30 | Fbp-220 | 170 | 190 |
| CWJ220LHA200 | 18.0~26.5 | 29 | ≤-22 | ≤-30 | Fbp-220 | 200 | 220 |
| CWJ180LHA100 | 14.5~22.0 | 22 | ≤-22 | ≤-30 | Fbp-180 | 100 | 120 |
| CWJ180LHA150 | 14.5~22.0 | 25 | ≤-22 | ≤-30 | Fbp-180 | 150 | 170 |
| CWJ180LHA170 | 14.5~22.0 | 27 | ≤-22 | ≤-30 | Fbp-180 | 170 | 190 |
| CWJ180LHA200 | 14.5~22.0 | 28 | ≤-22 | ≤-30 | Fbp-180 | 200 | 220 |
| CWJ140LHA150 | 12.5~18.0 | 23 | ≤-22 | ≤-30 | Fbp-140 | 150 | 170 |
| CWJ140LHA170 | 12.5~18.0 | 25 | ≤-22 | ≤-30 | Fbp-140 | 170 | 190 |
| CWJ140LHA200 | 12.5~18.0 | 26 | ≤-22 | ≤-30 | Fbp-140 | 200 | 220 |
| CWJ140LHA250 | 12.4~18.0 | 28 | ≤-22 | ≤-30 | Fbp-140 | 250 | 270 |
| CWJ120LHA250 | 10.0~15.0 | 26 | ≤-22 | ≤-30 | Fbp-140 | 250 | 270 |
| CWJ100LHA250 | 8.2~12.4 | 25 | ≤-22 | ≤-30 | Fbp-100 | 250 | 270 |
De Lensantenne van de piramidehoorn
【Specificatie】
| ModelNo * |
Freqwaaier (GHz) |
Aanwinst (dB) |
Minder belangrijk Niveau (dB) |
Schakelaar |
Monddiameter (Φmm) |
Lengte (mm) |
|
| E | H | ||||||
| CWJ140LHA22A | 11.9~18,0 | 22 | ≤-22 | ≤-30 | Fbp-140 | 138×108 | 205 |
| CWJ260LHA26A | 21.7~33,0 | 26 | ≤-22 | ≤-30 | Fbp-260 | 106×106 | 175 |
Punt die de Antenne van de Hoornlens concentreren
【Specificatie】
| ModelNo * |
Freqwaaier (GHz) |
Brandpuntsafstand (mm) | Schakelaar |
Monddiameter (Φmm) |
| CWJ320PLHA | 26.5~40.0 | 50-500 | Fbp-320 | 50-300 |
| CWJ260PLHA | 21.7~33.0 | 50-500 | Fbp-260 | 50-300 |
| CWJ220PLHA | 17.6~26.7 | 50-500 | Fbp-220 | 50-300 |
| CWJ180PLHA | 14.5~22.0 | 50-500 | Fbp-180 | 50-300 |
| CWJ140PLHA | 11.9~18.0 | 80-700 | Fbp-140 | 50-400 |
| CWJ120PLHA | 9.84~15.0 | 80-700 | Fbp-120 | 50-400 |
| CWJ100PLHA | 8.2~12.4 | 80-700 | Fbp-100 | 50-400 |
| CWJ84PLHA | 6.57~9.99 | 80-900 | Fbp-84 | 50-500 |
| CWJ70PLHA | 5.85~8.2 | 80-900 | Fbp-70 | 50-500 |
| CWJ58PLHA | 4.9~7.0 | 80-900 | Fbp-58 | 50-500 |
| CWJ48PLHA | 4~6 | 80-900 | Fbp-48 | 50-500 |
| CWJ40PLHA | 3.3 ~4,9 | 80-900 | Fbp-40 | 50-500 |
| CWJ32PLHA | 2.6~4 | 80-900 | Fbp-32 | 50-500 |
