| Markeren: | WR2300 golfgeleiderbuis,R3 Golfgeleiderbuis,6mm Golfgeleiderbuis |
||
|---|---|---|---|

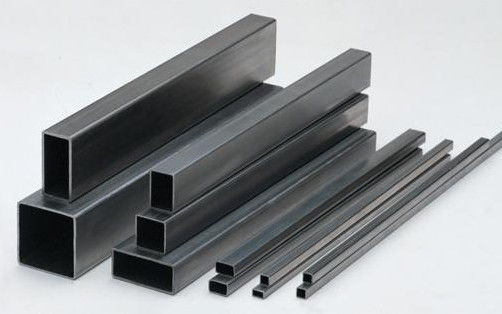

CWJ biedt buizen die van een de standaardrechthoekgolfgeleider golfgeleidergrootte WR10 behandelen aan door WR2300. Voor meer informatie tevreden om ons te contacteren en uw behoeften te bespreken met onze verkoopingenieur.
De rechthoekige Informatie van het Golfgeleiderbuizenstelsel
| ModelNo | EIA WG Benoeming |
CEI-WG Benoeming |
Freqwaaier (GHz) |
Materiaal (Voorraad) |
Binnen Afmetingen (mm) |
Norm Tol ±Inside Verduister (mm) |
Nommuur Dikte (mm) |
Buiten Afmetingen (mm) |
Norm Tol ±Outside Verduister (mm) |
Freq van Snijd af voor TE1,0 wijze (GHz) |
Golflengte van Afgesneden voor TE1,0 Wijze (mm) |
Theoretische Vermindering laagste aan hoogste freq (dB/100ft) |
|
| Al | Cu | ||||||||||||
| Cwj-BJ3… | WR2300 | R3 | 0.32-0.49 | Aluminium | 584.2*292.1 | 6 | 0,257 | 1169.2 | 0.270-0.400 | ||||
| Cwj-BJ4… | WR2100 | R4 | 0.35-0.53 | Aluminium | 533.4*266.7 | 5 | 0,281 | 1067.5 | 0.310-0.460 | ||||
| Cwj-BJ5… | WR1800 | R5 | 0.41-0.62 | Aluminium | 457.2*228.6 | 0,51 | 5 | 0,328 | 915.0 | 0.390-0.580 | |||
| Cwj-BJ6… | WR1500 | R6 | 0.49-0.75 | Aluminium | 381*190.5 | 0,38 | 3.18 | 0,393 | 762.5 | 0.510-0.760 | |||
| Cwj-BJ8… | WR1150 | R8 | 0.64-0.98 | Aluminium | 292.1*146.05 | 0,38 | 3.18 | 0,513 | 584.6 | 0.760-0.113 | |||
| Cwj-BJ9… | WR975 | R9 | 0.76-1.15 | Aluminium | 247.65*123.82 | 3.18 | 0,605 | 495.6 | 0.098-0.145 | ||||
| Cwj-BJ12… | WR770 | R12 | 0.96-1.46 | Aluminium | 195.58*97.79 | 3.18 | 0,766 | 391.4 | 0.140-0.206 | ||||
| Cwj-BJ14… | WR650 | R14 | 1.13-1.73 | Koper Aluminium |
165.1*82.55 | 0,33 | 2.03 | 169.16*86.61 | 0,2 | 0,908 | 330.4 | 0.180-0.266 | 0.214-0.317 |
| Cwj-BJ18… | WR510 | R18 | 1.45-2.2 | Koper Aluminium |
129.54*64.77 | 0,26 | 2.03 | 133.6*68.83 | 0,2 | 1,157 | 259.1 | 0.259-0.382 | 0.309-0.456 |
| Cwj-BJ22… | WR430 | R22 | 1.72-2.61 | Koper Aluminium |
109.22*54.61 | 0,22 | 2.03 | 113.28*58.67 | 0,2 | 1,372 | 218.4 | 0.334-0.494 | 0.399-0.588 |
| Cwj-BJ26… | WR340 | R26 | 2.17-3.3 | Koper Aluminium |
86.36*43.18 | 0,17 | 2.03 | 90.42*47.24 | 0,17 | 1,736 | 172.7 | 0.475-0.702 | 0.567-0.837 |
| Cwj-BJ32… | WR284 | R32 | 2.6-3.95 | Koper Aluminium |
72.14*34.04 | 0,14 | 2.03 | 76.2*38.1 | 0,14 | 2,078 | 144.3 | 0.652-0.953 | 0.777-1.136 |
| Cwj-BJ40… | WR229 | R40 | 3.22-4.9 | Koper Aluminium |
58.17*29.08 | 0,12 | 1,625 | 61.42*32.33 | 0,12 | 2,577 | 116.3 | 0.860-1.270 | 1.026-1.514 |
| Cwj-BJ48… | WR187 | R48 | 3.94-5.99 | Koper Aluminium |
47.549*22.149 | 0,095 | 1,625 | 50.8*25.4 | 0,1 | 3,153 | 95.1 | 1.231-1.795 | 1.467-2.140 |
| Cwj-BJ58… | WR159 | R58 | 4.64-7.05 | Koper Aluminium |
40.386*20.193 | 0,081 | 1,625 | 43.64*23.44 | 0,08 | 3,712 | 80.77 | 1.487-2.195 | 1.773-2.617 |
| Cwj-BJ70… | WR137 | R70 | 5.38-8.17 | Koper Aluminium |
34.849*15.799 | 0,07 | 1,625 | 38.1*19.05 | 0,08 | 4,301 | 69.7 | 2.004-2.910 | 2.390-3.470 |
| Cwj-BJ84… | WR112 | R84 | 6.57-9.99 | Koper Aluminium |
28.499*12.624 | 0,057 | 1,625 | 31.75*15.88 | 0,05 | 5,260 | 57 | 2.761-3.993 | 3.292-4.761 |
| Cwj-BJ100… | WR90 | R100 | 8.2-12.5 | Koper Aluminium |
22.86*10.16 | 0,046 | 1.27 | 25.4*12.7 | 0,05 | 6,557 | 45.72 | 3.833-5.547 | 4.570-6.614 |
| Cwj-BJ120… | WR75 | R120 | 9.84-15 | Koper Aluminium |
19.05*9.525 | 0,038 | 1.27 | 21.59*12.06 | 0,05 | 7,869 | 38.1 | 4.590-6.775 | 5.472-8.078 |
| Cwj-BJ140… | WR62 | R140 | 11.9-18 | Koper Aluminium |
15.799*7.899 | 0,031 | 1,015 | 17.83*9.93 | 0,05 | 9,488 | 31.6 | 6.077-8.971 | 7.246-10.696 |
| Cwj-BJ180… | WR51 | R180 | 14.5-22 | Koper Aluminium |
12.95*6.477 | 0,026 | 1,015 | 14.99*8.51 | 0,05 | 11,575 | 25.91 | 8.185-12.082 | 9.759-14.406 |
| Cwj-BJ220… | WR42 | R220 | 17.6-26.7 | Koper Aluminium |
10.668*4.318 | 0,021 | 1,015 | 12.7*6.35 | 0,05 | 14,051 | 21.34 | 12.970-18.487 | 15.464-22.042 |
| Cwj-BJ260… | WR34 | R260 | 21.7-33 | Koper Aluminium |
8.636*4.318 | 0,02 | 1,015 | 10.67*6.35 | 0,05 | 17,358 | 17.27 | 15.036-22.197 | 17.928-26.465 |
| Cwj-BJ320… | WR28 | R320 | 26.3-40 | Koper Aluminium |
7.12*3.556 | 0,02 | 1,015 | 9.14*5.59 | 0,05 | 21,053 | 14.22 | 20.120-29.701 | 23.989-35.413 |
| Cwj-BJ400… | WR22 | R400 | 32.9-50.1 | Koper Aluminium |
5.69*2.845 | 0,02 | 1,015 | 7.72*4.88 | 0,05 | 26,344 | 11.38 | 28.119-41.508 | 33.526-49.491 |
| Cwj-BJ500… | WR19 | R500 | 39.2-59.6 | Koper | 4.775*2.388 | 0,02 | 1,015 | 6.81*4.42 | 0,05 | 31,393 | 9.55 | 43.603-64.367 | |
| Cwj-BJ620… | WR15 | R620 | 49.8-75.8 | Koper | 3.795*1.88 | 0,02 | 1,015 | 5.79*3.91 | 0,05 | 39,499 | 7.52 | 62.425-92.152 | |
| Cwj-BJ740… | WR12 | R740 | 60.5-91.9 | Koper | 3.0988*1.5494 | 0,0127 | 1,015 | 5.13*3.58 | 0,05 | 48,374 | 6.2 | 83.409-123.128 | |
| Cwj-BJ900… | WR10 | R900 | 73.8-112 | Koper | 2.54*1.27 | 0,0127 | 1,015 | 4.57*3.3 | 0,05 | 59,016 | 5.08 | 112.397-165.920 | |
