| Hoog licht: | FDP FDM Waveguide Rotary Joint,WR284 Waveguide Rotary Joint,CWJ Waveguide Rotary Joint |
||
|---|---|---|---|

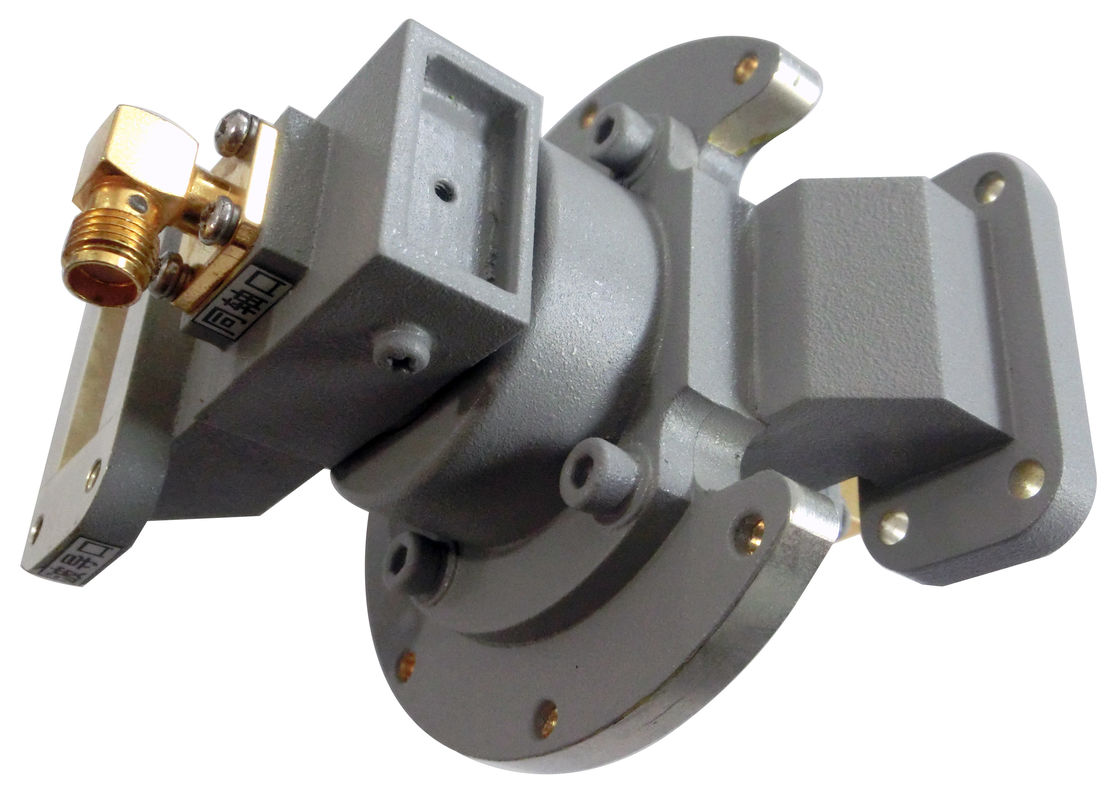

| Dubbele golfgeleider - kanaal Roterend Gezamenlijk Assortiment | |||||||||
| MODELLEER NR |
FREQ WAAIER |
VSWR | Maximum IL | Min ISO. |
Band Breedte |
FLENStype |
WG TYPE |
MATERIAAL | PDF-Informatieblad |
| (GHz) | Maximum | (dB) | (dB) | ||||||
| CWJ32WRJUUB | 2.60-3.95 | 1.3 | 0,5 | 50 | 0,05 | FDP/FDM | WR284 | Al | |
| CWJ48WRJUUB | 3.94-5.99 | 1.3 | 0,5 | 50 | 0,05 | FDP/FDM | WR187 | Al | |
| CWJ70WRJUUB | 5.38-8.17 | 1.3 | 0,5 | 50 | 0,05 | FDP/FDM | WR137 | Cu | |
| CWJ84WRJUUB | 6.57-9.99 | 1.3 | 0,5 | 50 | 0,05 | FBP/FBM/FBE | WR112 | Cu | |
| CWJ100WRJUUB | 8.2-12.4 | 1.3 | 0,6 | 50 | 0,05 | FBP/FBM/FBE | WR90 | Cu | |
| CWJ120WRJUUB | 9.84-15.0 | 1.3 | 0,6 | 50 | 0,05 | FBP/FBM/FBE | WR75 | Cu | |
| CWJ140WRJUUB | 11.9-18 | 1.3 | 0,6 | 50 | 0,05 | FBP/FBM/FBE | WR62 | Cu | |
| CWJ320WRJUUB | 26.5-40.0 | 1.3 | 1.2 | 50 | 0,05 | FBP/FBM/FBE | WR28 | Cu | |
| CWJ120WRJUIS |
CH1: 14-14.5, CH2: Gelijkstroom-2 |
CH1: 1.2, CH2: 1.2 |
CH1: 0,3, CH2: 0,3 |
60 | FBP/FBM/FBE | WR75 | Cu/Al | ||
| CWJ140WRJUIT |
CH1: 14-14.5, CH2: 0.01-2.15 |
CH1: 1.15, CH2: 1.2 |
CH1: 0,3, CH2: 0,2 |
60 | FBP/FBM/FBE | WR62 | Cu/Al | ||
